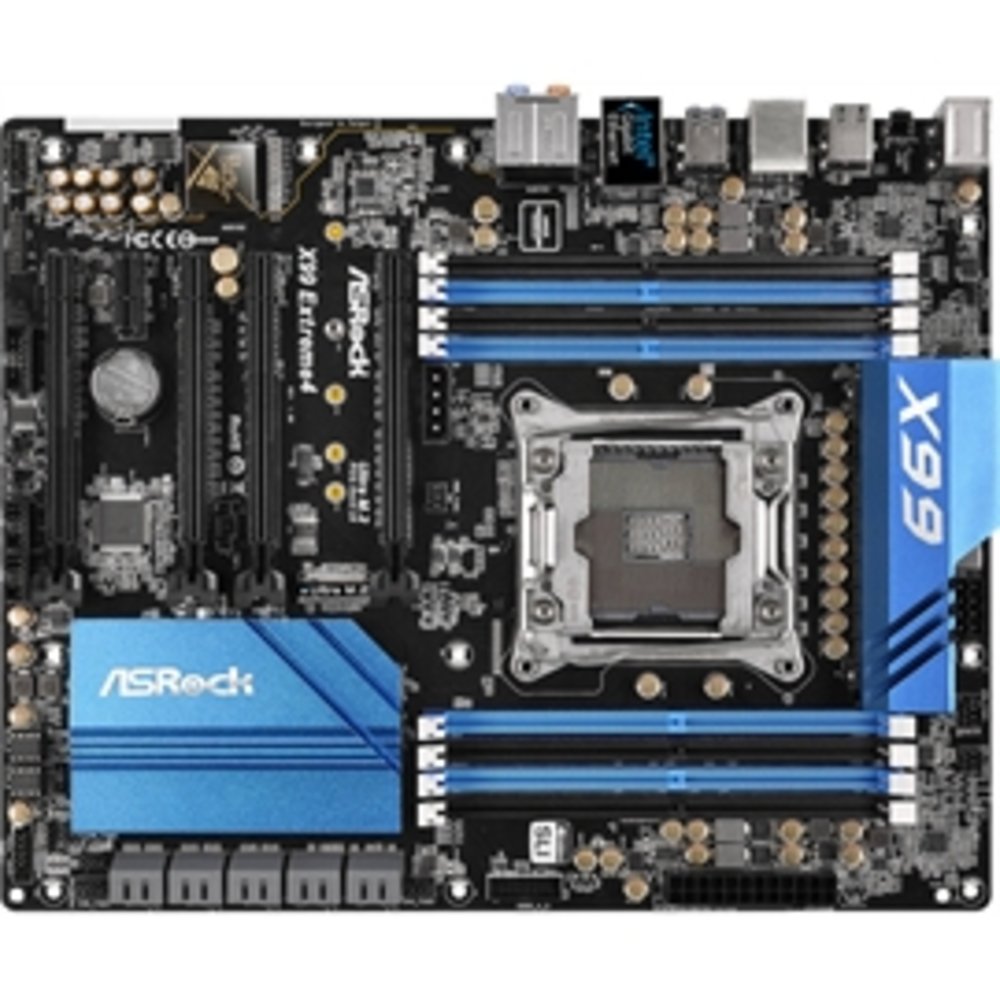

ASRock Motherboard MB-X99 EXTREME4 Intel X99 LGA2011-3 DDR4 USB 3.0 Thunderbolt Retail
ASRock Motherboard MB-X99 EXTREME4 Intel X99 LGA2011-3 DDR4 USB 3.0 Thunderbolt Retail
Supports NVIDIA Quadro and AMD FirePro Workstation Graphics Cards
Three PCIe Gen3 x16 slots that not only support ordinary graphics cards, but are also fully compatible with professional NVIDIA Quadro and AMD FirePro workstation graphics solutions.
XXL Aluminum Alloy Heatsink Design
The extra large aluminum alloy heatsinks take away heat dramatically. As the MOSFETs and chipsets areas are well covered by these heatsinks to protect them from overheating, MOSFET and chipsets can perform with lower temperature, and your motherboard and system will be more stable and reliable.
Premium 60A Power Choke
Compared to traditional chokes, ASRocks new-gen premium power chokes effectively increase up to 3 times better saturation current, providing enhanced and improved Vcore voltage to the motherboard.
Premium Memory Alloy Choke
Specially designed for memory power delivery, the new-gen alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard.
Ultra Dual-N MOSFET
Combining two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Platinum Caps
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.
Unique Feature
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Ultra Dual-N MOSFET (UDM)
- Nichicon 12K Platinum
CPU
- Supports Intel Core i7 and Xeon 18-Core Processors Family for the LGA 2011-3 Socket
- Digi Power design
- 12 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Untied Overclocking Technology
Chipset
Intel X99
Memory
- Quad Channel DDR4 Memory Technology
- 8 x DDR4 DIMM Slots
- Supports DDR4 3000+(OC)/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory
(Due to the operating system limitation, the actual memory size may be less th
Graphics
n/a
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Supports Purity Sound 2
- Nichicon Fine Gold Series Audio
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I218V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 3 x PCI Express 3.0 x16 Slots (PCIE1 at x16 mode, PCIE3 at x16 mode, PCIE5 at x8 mode)
(If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE5 will run at x16/x8/x4.)
- 1 x PCI Express 2.0 x16 Slot (PCIE2 at x4 mode)
- 1 x PCI
Storage
- 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
- 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
- 1 x Ultra
Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
- 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x eSATA Connector
- 1 x Optical SPDIF Out Port
- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 4 x USB 3.0 Ports (Supports ESD
Software and BIOS
Software:
- ASRock A-Tuning
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
UEFI:
- ASRock Full HD UEFI
-
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
Accessories
- 1 x ASRock SLI_Bridge_2S Card
- 1 x ASRock 3-Way SLI-2S1S Bridge Card
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x HDD Saver Cable
- 1 x Screw for Ultra M.2 Socket
Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +
Form Factor
- ATX Form Factor
- 2oz Copper PCB
- High Density Glass Fabric PCB
OS
- Microsoft Windows 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
Item Dimension (L inchxW inchxH inch)
13 x 16 x 3
Weight
4.00 lb
Warranty Information
1 Year
