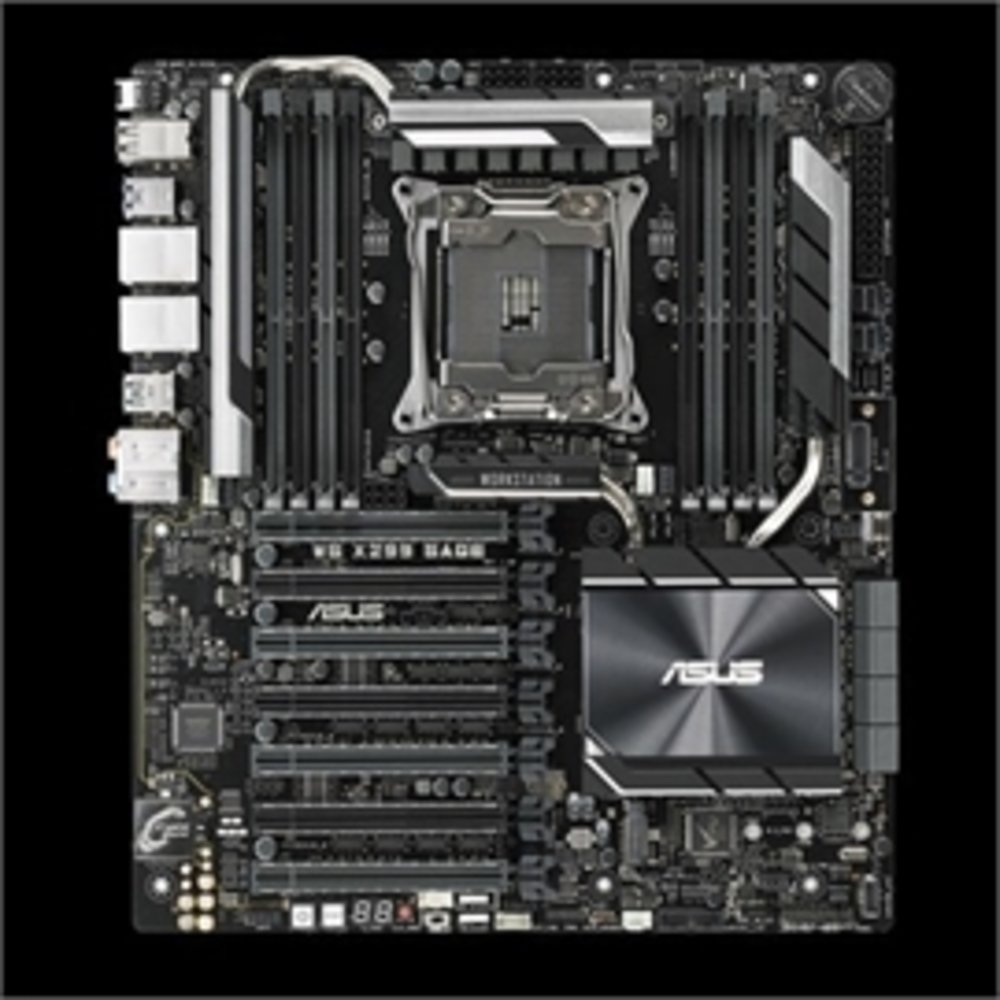

Asus Motherboard WS X299 SAGE X299 4DIMM 64GB DDR4 Brown Box
Asus Motherboard WS X299 SAGE X299 4DIMM 64GB DDR4 Brown Box
Intel LGA 2066 CEB motherboard with quad-GPU support, DDR4 4200MHz, dual M.2 & U.2, USB 3.1 Gen 2 connectors, and ASUS Control Center
Quad-GPU graphics power: Fits up to four dual-slot graphics cards and supports 4-way NVIDIA SLITM or AMD CrossFireXTM GPU configurations.
5-Way Optimization: One-click, system-wide tuning, delivers optimized overclocking and intelligent cooling for a diverse range of workloads.
Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI.
Ultra-efficient VRM heatsink: Metal-fin-array design maximizes surface area for heat dissipation to enable unthrottled performance.
ASUS Control Center: A software utility that provides convenient, secure and cost-saving centralized IT management for small- and medium-sized businesses.
Ultra-fast storage: Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Gen 2 with Type-A and Type-C ports onboard and a front-panel connector.
CPU
Intel Socket 2066 CoreTM X-Series Processors Supports Intel Virtual RAID on CPU (VROC) The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types Refer to www.asus.com for CPU support list
Chipset
Intel X299
Memory
Intel CoreTM X-series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel CoreTM X-series Processors (4-core)
Multi-GPU Support
Supports NVIDIA 4-Way SLITM Technology
Supports AMD 4-Way CrossFireX Technology
Storage
Intel X299 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6
LAN
Intel I210-AT, 1 x Gigabit LAN Controller(s)
Intel I219-LM , 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detect
USB Ports
Intel X299 Chipset :
8 x USB 3.1 Gen 1 port(s) (6 at back panel, , 2 at mid-board)
Intel X299 Chipset :
4 x USB 2.0 port(s) (4 at back panel, )
ASMedia USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back
Special Features
OC Design - ASUS PRO Clock II Technology
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
TPU
Fan Xpert4<
Operating System Support
Windows 10 64-bit
Back I/O Ports
2 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (teal blue)Type-A
1 x USB 3.1 Gen 2 (black)USB Type-C TM
6 x USB 3.1 Gen 1 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDI
Internal I/O Ports
1 x Aura Addressable Strip Header(s)
2 x U.2 port
1 x AAFP connector
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x M.2 Socket 3 with M key, type 224
Accessories
Users manual
ASUS Q-Shield
1 x Vertical M.2 bracket set
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
1 x M.2 screws
1 x Supporting DVD
1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
1 x 3-Way SLI br
Form Factor
CEB Form Factor
12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
Environment
Operation temperature: 10 - 35oC
Non operation temperature: -40 - 70oC
Non operation humidity: 20% - 90% ( Non condensing)
Note
Intel VROC is supported via RSTe, and Intel VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel VROC_HW_key installed. PCIEX16_1 to PCIEx16_3 PCIEX16_4 to PCIEx16_7 support Intel VROC sepa
Item Dimension (L inchxW inchxH inch)
NA
Weight
3.00lb
Warranty Information
3 Years w/ 1st year ARS
