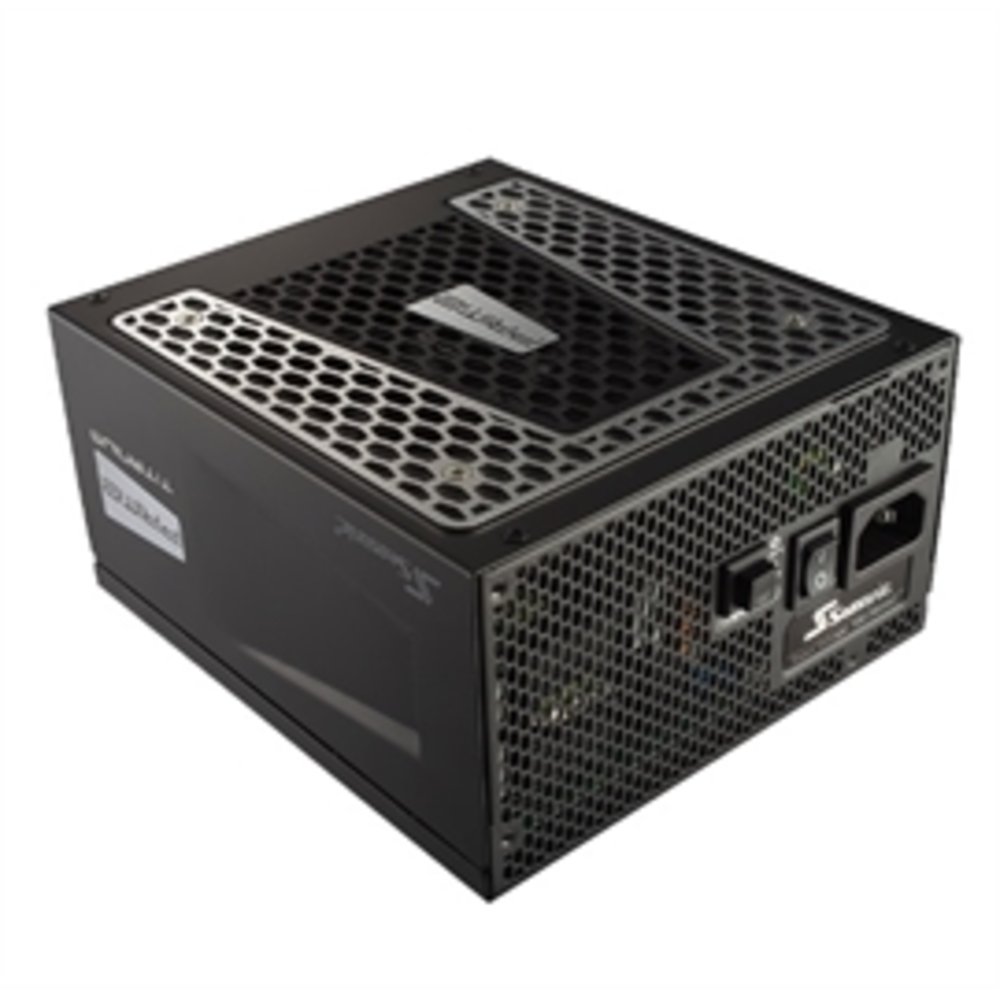

Seasonic Power Supply SSR-850TR 850W ATX 12 V 135mm 80PLUS PRIME Ultra Titanium Retail
Seasonic Power Supply SSR-850TR 850W ATX 12 V 135mm 80PLUS PRIME Ultra Titanium Retail
PRIME Ultra 850 W Titanium
Seasonics top-notch design shines through this top-notch power supply technology, where high level components are assembled into an optimal circuit design to guarantee the highest level of electrical performance. The PRIME 850 Titanium achieves 80 PLUS Titanium certification, where efficiency is 94 % at 50 % load. This leading member of the series boasts an improved DC to DC converter design where pins and a copper plate replace cables to connect the back panel and the PCB for increased efficiency. Fully modular cabling makes this power supplies one of the most versatile high-end choices for PC enthusiasts.
80PLUS
Titanium
Form Factor
Intel ATX 12 V
Fan Information
Fan Size:135 mm
Fan Control:Premium Hybrid Fan Control
Fan Bearing:Fluid Dynamic Bearing
Life Expectancy:50,000 hours at 40 oC, 15 % - 65 % RH
Cable Information
Modularity:Fully Modular
Cable type:Flat black cables
Electrical Features
Operating Temperature:0 - 50 oC
MTBF at 25 oC, excl. fan:150,000 hours
AC Input:Full Range
Protection:OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC:cTUVus, TUV, CB, CCC, BSMI, EAC
Environmental Compliance:Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Item Dimension (L inchxW inchxH inch)
7 x 6 x 4
Weight
7.50lb
Warranty Information
12 years
PRIME Ultra 850 W Titanium
Seasonics top-notch design shines through this top-notch power supply technology, where high level components are assembled into an optimal circuit design to guarantee the highest level of electrical performance. The PRIME 850 Titanium achieves 80 PLUS Titanium certification, where efficiency is 94 % at 50 % load. This leading member of the series boasts an improved DC to DC converter design where pins and a copper plate replace cables to connect the back panel and the PCB for increased efficiency. Fully modular cabling makes this power supplies one of the most versatile high-end choices for PC enthusiasts.
80PLUS
Titanium
Form Factor
Intel ATX 12 V
Fan Information
Fan Size:135 mm
Fan Control:Premium Hybrid Fan Control
Fan Bearing:Fluid Dynamic Bearing
Life Expectancy:50,000 hours at 40 oC, 15 % - 65 % RH
Cable Information
Modularity:Fully Modular
Cable type:Flat black cables
Electrical Features
Operating Temperature:0 - 50 oC
MTBF at 25 oC, excl. fan:150,000 hours
AC Input:Full Range
Protection:OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC:cTUVus, TUV, CB, CCC, BSMI, EAC
Environmental Compliance:Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Item Dimension (L inchxW inchxH inch)
7 x 6 x 4
Weight
7.50lb
Warranty Information
12 years
