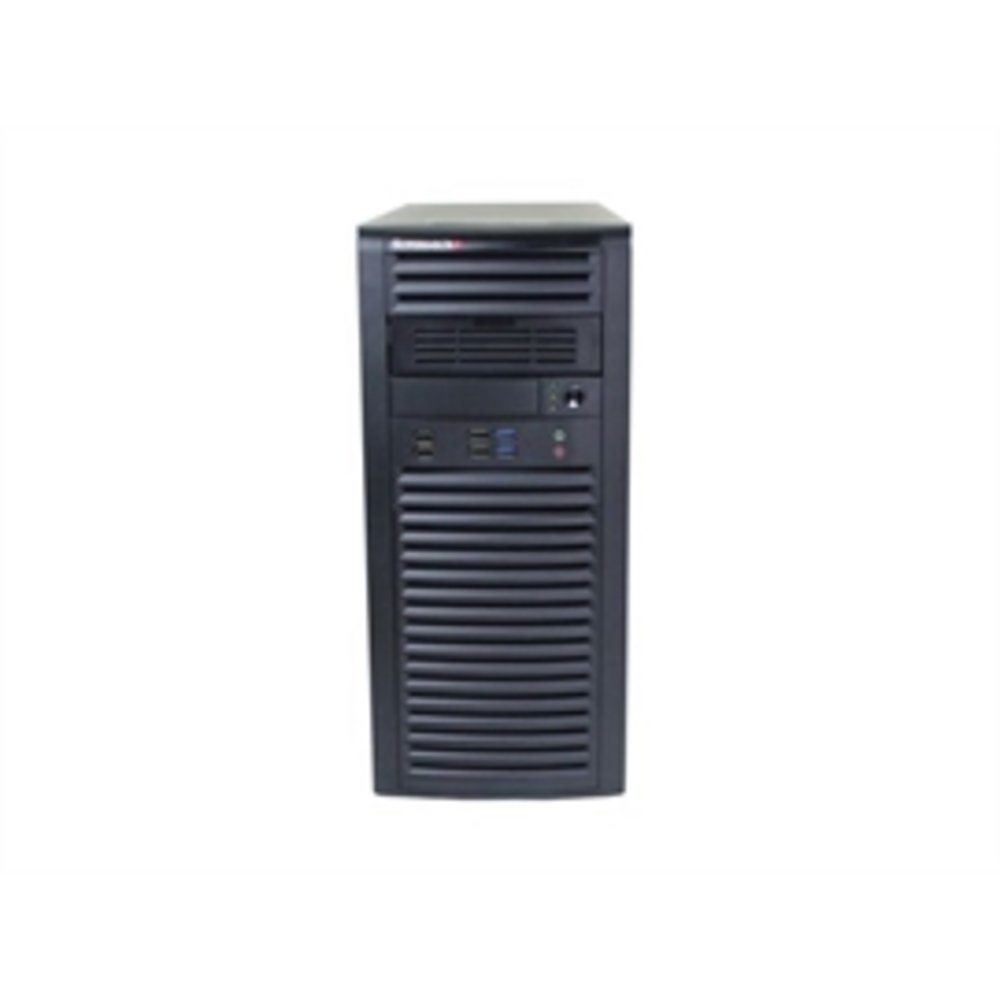

Supermicro System SYS-5038A-I(3YR) E5-2600v3/E5-1600v3 Core i7 S2011 DDR4 PCIE 900W Retail
Supermicro System SYS-5038A-I(3YR) E5-2600v3/E5-1600v3 Core i7 S2011 DDR4 PCIE 900W Retail
Single socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3, E5-1600 v3, and 4th gen. Core i7
Intel C612 chipset
Up to 512GB ECC DDR4 2133MHz LRDIMM or 64GB ECC/non-ECC UDIMM (available with Core i7 only), and 8x DIMM slots
4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8), 2x PCI-E 2.0 x1 (in x4) slots
I/O Ports: 2 GbE, ALC 1150 HD Audio, 6 USB 3.0 + 2 USB 3.0 (front), 1 COM, 1 TPM, 1 PS/2 Keyboard/Mouse port
4x 3.5 internal drive bays
900W Multi-Output Power Supply
CPU
Intel Xeon processor E5 2600/1600 v3 family or Intel 4th gen. Core i7 series (up to 160W TDP)
Single Socket R3 (LGA 2011)
Core / Cache
Up to 18 Cores / Up to 45MB Cache
Memory Capacity
8x 288-pin DDR4 DIMM slots
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM
Up to 64GB DDR4 ECC/non-ECC
UDIMM (available with Core i7 only)
Memory Type
2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chipset
Intel C612 Express chipset
SATA
SATA3 (6Gbps) via C612 controller
RAID 0, 1, 5, 10 support
Network Controllers
Intel i210-AT Dual Port Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
RealTek ALC1150 High Definition Audio
LAN
2x RJ45 Gigabit Ethernet LAN ports
USB
8x USB 3.0 ports (2 front + 6 rear)
Keyboard/Mouse
1x PS/2 Keyboard/Mouse port
Serial Port / Header
1x header
TPM
1x TPM 1.2 20-pin Header
Form Factor
Mid-Tower
PCI-Express
4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8)
2x PCI-E 2.0 x1 (in x4) slots
Item Dimension (LxWxH)
21 x 17 x 8
Weight
35.5 lb
Single socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3, E5-1600 v3, and 4th gen. Core i7
Intel C612 chipset
Up to 512GB ECC DDR4 2133MHz LRDIMM or 64GB ECC/non-ECC UDIMM (available with Core i7 only), and 8x DIMM slots
4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8), 2x PCI-E 2.0 x1 (in x4) slots
I/O Ports: 2 GbE, ALC 1150 HD Audio, 6 USB 3.0 + 2 USB 3.0 (front), 1 COM, 1 TPM, 1 PS/2 Keyboard/Mouse port
4x 3.5 internal drive bays
900W Multi-Output Power Supply
CPU
Intel Xeon processor E5 2600/1600 v3 family or Intel 4th gen. Core i7 series (up to 160W TDP)
Single Socket R3 (LGA 2011)
Core / Cache
Up to 18 Cores / Up to 45MB Cache
Memory Capacity
8x 288-pin DDR4 DIMM slots
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM
Up to 64GB DDR4 ECC/non-ECC
UDIMM (available with Core i7 only)
Memory Type
2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chipset
Intel C612 Express chipset
SATA
SATA3 (6Gbps) via C612 controller
RAID 0, 1, 5, 10 support
Network Controllers
Intel i210-AT Dual Port Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
RealTek ALC1150 High Definition Audio
LAN
2x RJ45 Gigabit Ethernet LAN ports
USB
8x USB 3.0 ports (2 front + 6 rear)
Keyboard/Mouse
1x PS/2 Keyboard/Mouse port
Serial Port / Header
1x header
TPM
1x TPM 1.2 20-pin Header
Form Factor
Mid-Tower
PCI-Express
4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8)
2x PCI-E 2.0 x1 (in x4) slots
Item Dimension (LxWxH)
21 x 17 x 8
Weight
35.5 lb
